Yokogawa F3PU30-0S Power Supply Module
Specification Details
Brand: Yokogawa
Part Number: F3PU30-0S
Product Type: Power Supply Module
PLC Series: FA-M3

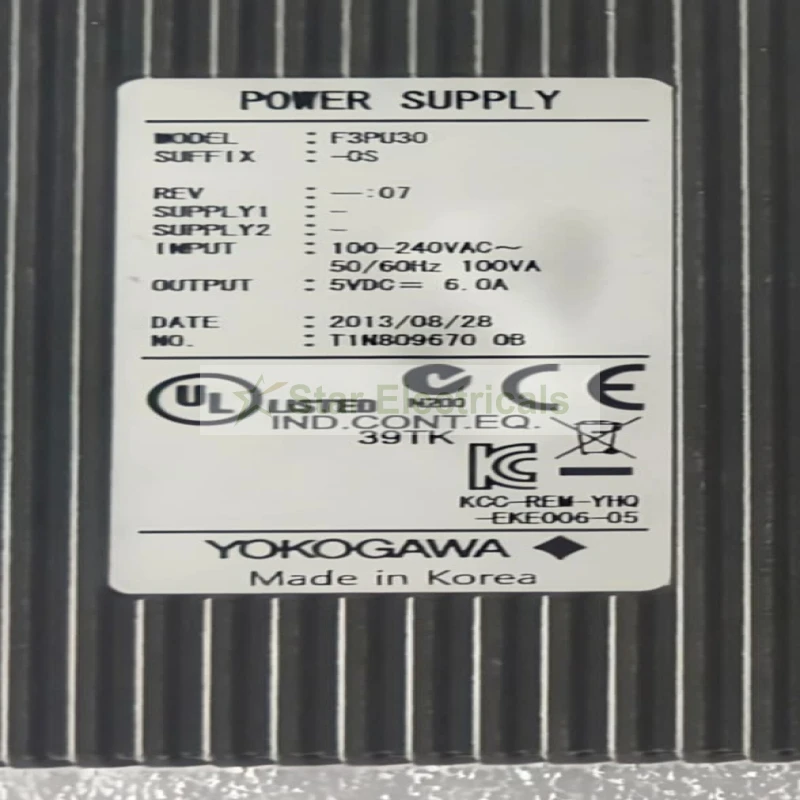

Input Voltage: 100–240VAC
Input Phase: Single Phase
Input Frequency: 50/60Hz
Supply Voltage Range: 85–264VAC
Power Consumption: 100VA
Output Voltage: 5VDC
Output Current: 6.0A
Output Power: Approx. 30W
Compatible Base Modules: F3BU05, F3BU09, F3BU13, F3BU16
Supported Slots: 5, 9, 13 and 16 slots

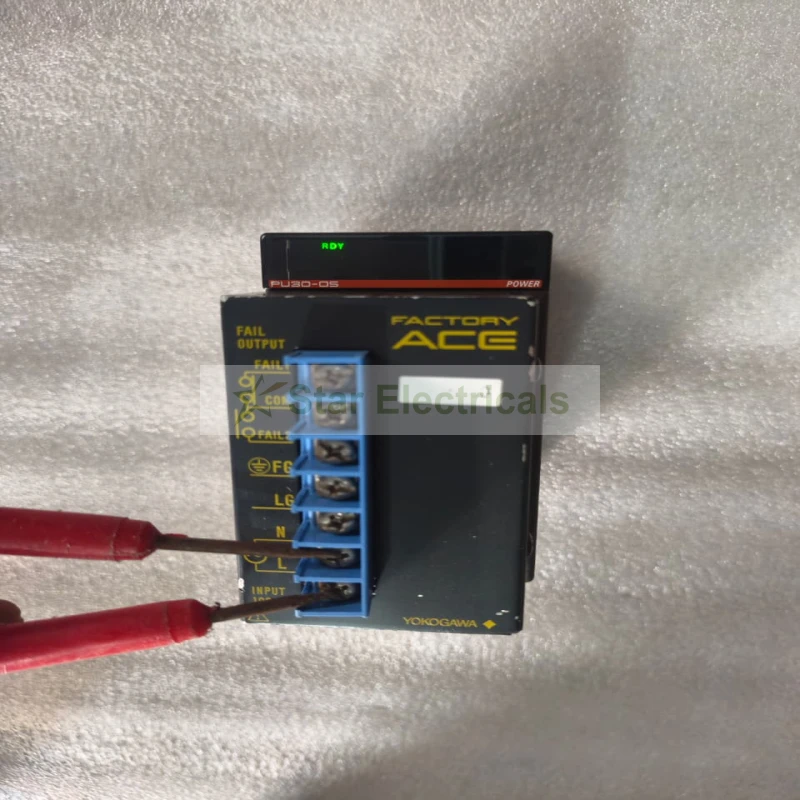

Terminal Screw: M4
Mounting/Application: FA-M3 PLC Base Module
Inrush Current: 20A max. at 120VAC / 45A max. at 240VAC
Insulation Resistance: 5MΩ minimum
Leakage Current: 3.5mA max.
Dimensions: Approx. 58 × 100 × 126.1 mm, excluding protrusions
Weight: Approx. 380g
Country Of Origin: Made In Korea
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
The Yokogawa F3PU30-0S is a high-reliability power supply module designed for the Yokogawa FA-M3 Range-Free Multi-Controller / PLC system. It accepts a wide 100–240VAC single-phase input at 50/60Hz and provides a regulated 5VDC output rated at 6.0A for powering the PLC system.
The F3PU30-0S is designed for use with Yokogawa F3BU05, F3BU09, F3BU13 and F3BU16 base modules, supporting systems with 5, 9, 13 or 16 slots. The module uses M4 screw terminals and is intended for industrial automation, process control, machinery control and PLC-based applications.
According to Yokogawa's technical documentation, the module has a 100VA power consumption, an AC supply fluctuation range of 85–264VAC, and a rated 5VDC/6.0A output. The F3PU30-0S is therefore suitable as the primary power supply for compatible FA-M3 PLC base configurations.
