TURCK JBBS-57-E811 DeviceNet 8-Port Passive Junction Box Hub
Specification Details
Brand: TURCK
Model: JBBS-57-E811
Ident. No.: U0205
Product Type: Passive DeviceNet Junction Box
Network Protocol: DeviceNet
Number of Ports: 8
Drop Connectors: 8 × M12 × 1, 5-Pin Female
Bus In/Out: 7/8" Minifast
Bus Connectors: 1 × 7/8" Male + 1 × 7/8" Female
Voltage Monitoring: Yes
Nominal Voltage: 24 V
Low Voltage LED: <12.9 V – Amber
Normal Voltage LED: 12.9–25.6 V – Green
High Voltage LED: >25.6 V – Amber
Protection Rating: IP67
Connection Technology: M12
Device Type: Passive Fieldbus Junction Box
Housing: Fiberglass / industrial housing
Application: DeviceNet / industrial automation
Identified Weight: Approx. 696 g
Country Of Origin: Made In Mexico
Condition: Used Excellent Working (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.

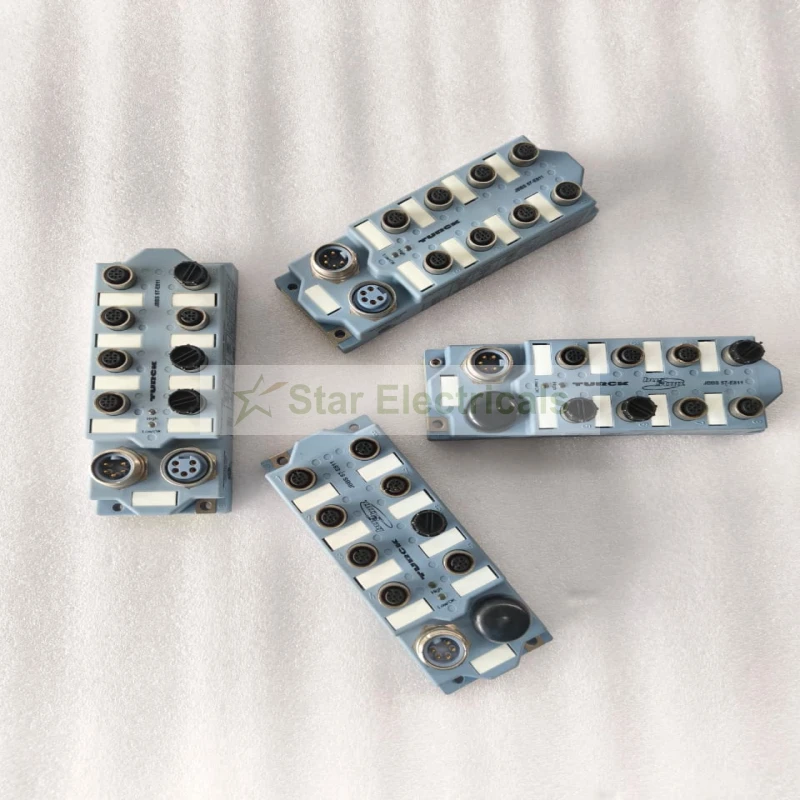

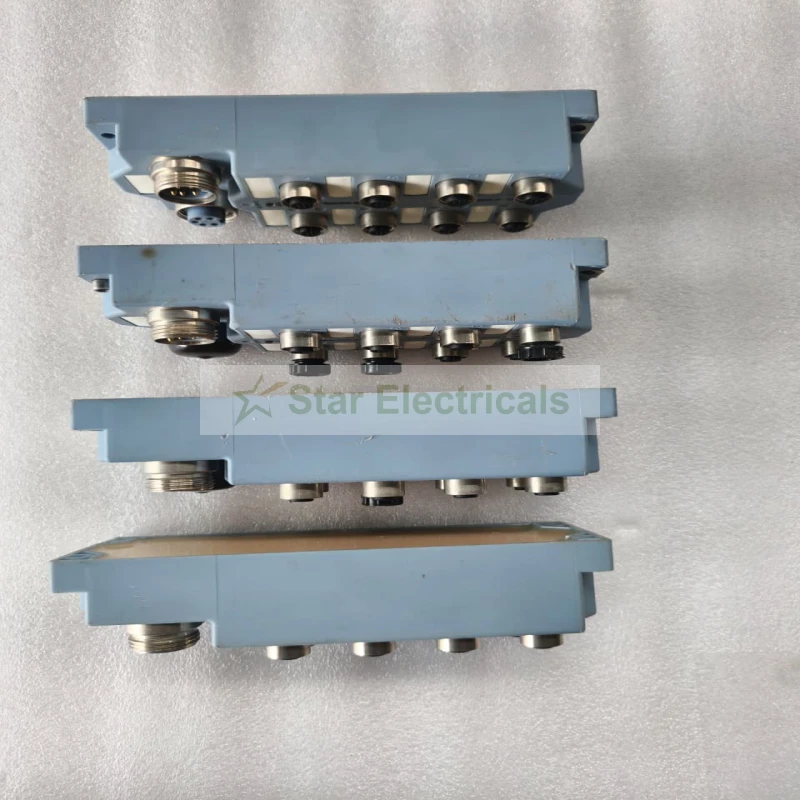

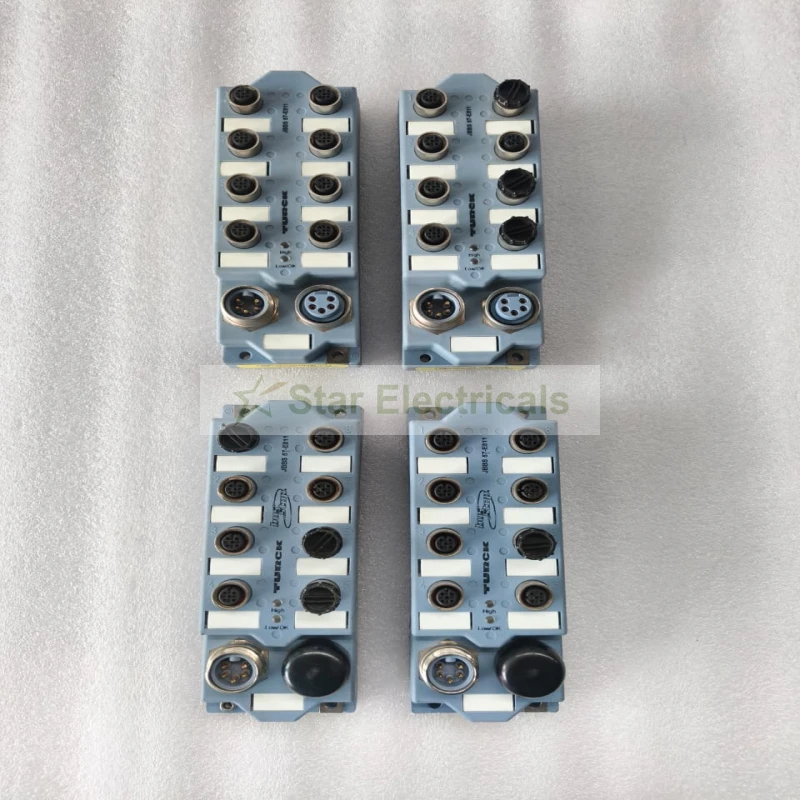

The TURCK JBBS-57-E811 DeviceNet Junction Box is an industrial 8-port passive DeviceNet hub/junction designed to provide convenient connection of multiple field devices to a DeviceNet network. It combines eight 5-pin M12 Eurofast field connections with 7/8" Minifast bus-in and bus-out connections for efficient network distribution.

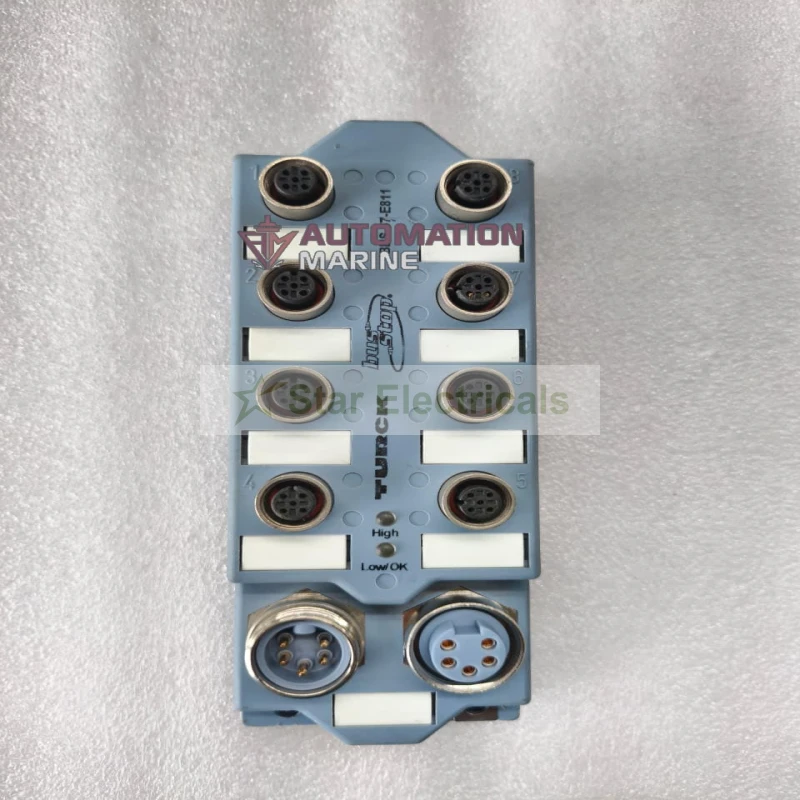

A major feature of the JBBS-57-E811 is its integrated DeviceNet voltage monitoring function. The front LED indicator provides an easy visual indication of network supply voltage: Amber for low voltage below 12.9 V, Green for normal voltage from 12.9 to 25.6 V, and Amber for high voltage above 25.6 V.
The passive junction-box design makes the TURCK JBBS-57-E811 suitable for industrial automation installations where several DeviceNet field devices need to be connected at a centralized location. The M12 connections provide practical field wiring, while the 7/8" bus connections support trunk-line networking.
The TURCK JBBS-57-E811 is well suited for PLC systems, industrial automation networks, machine control, factory automation, DeviceNet installations, field I/O connectivity, and industrial control panels.
