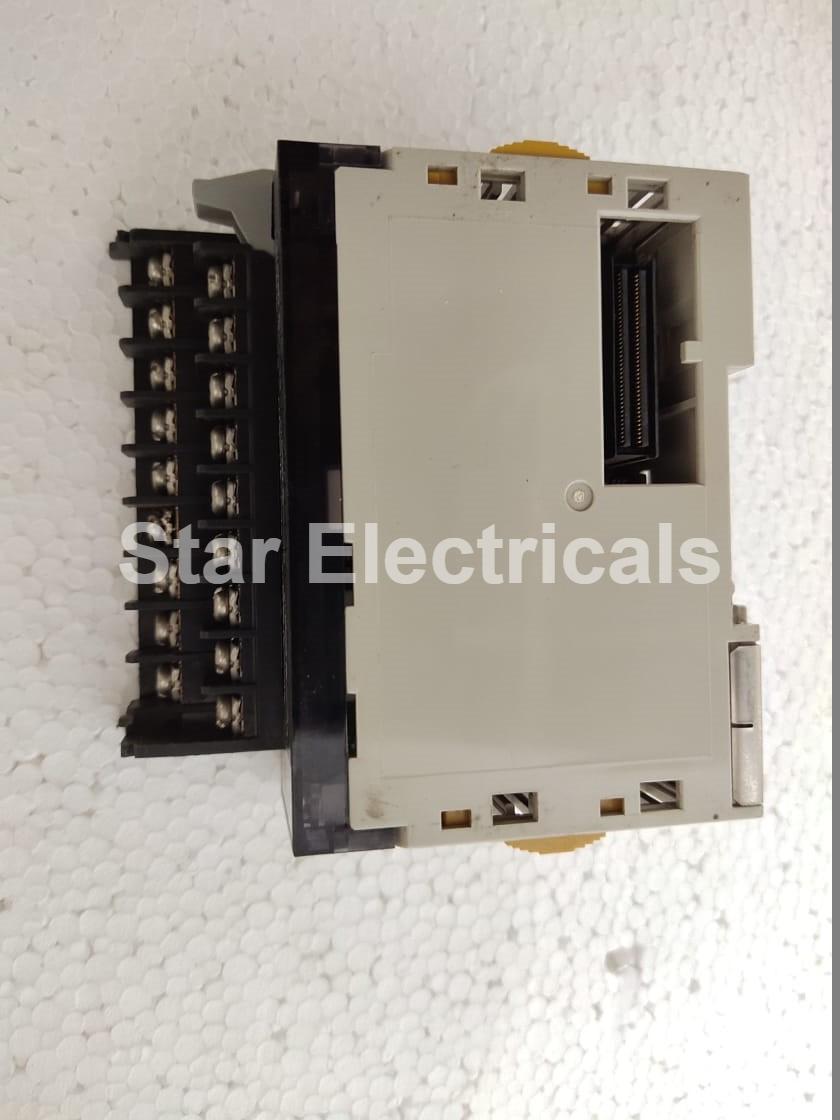

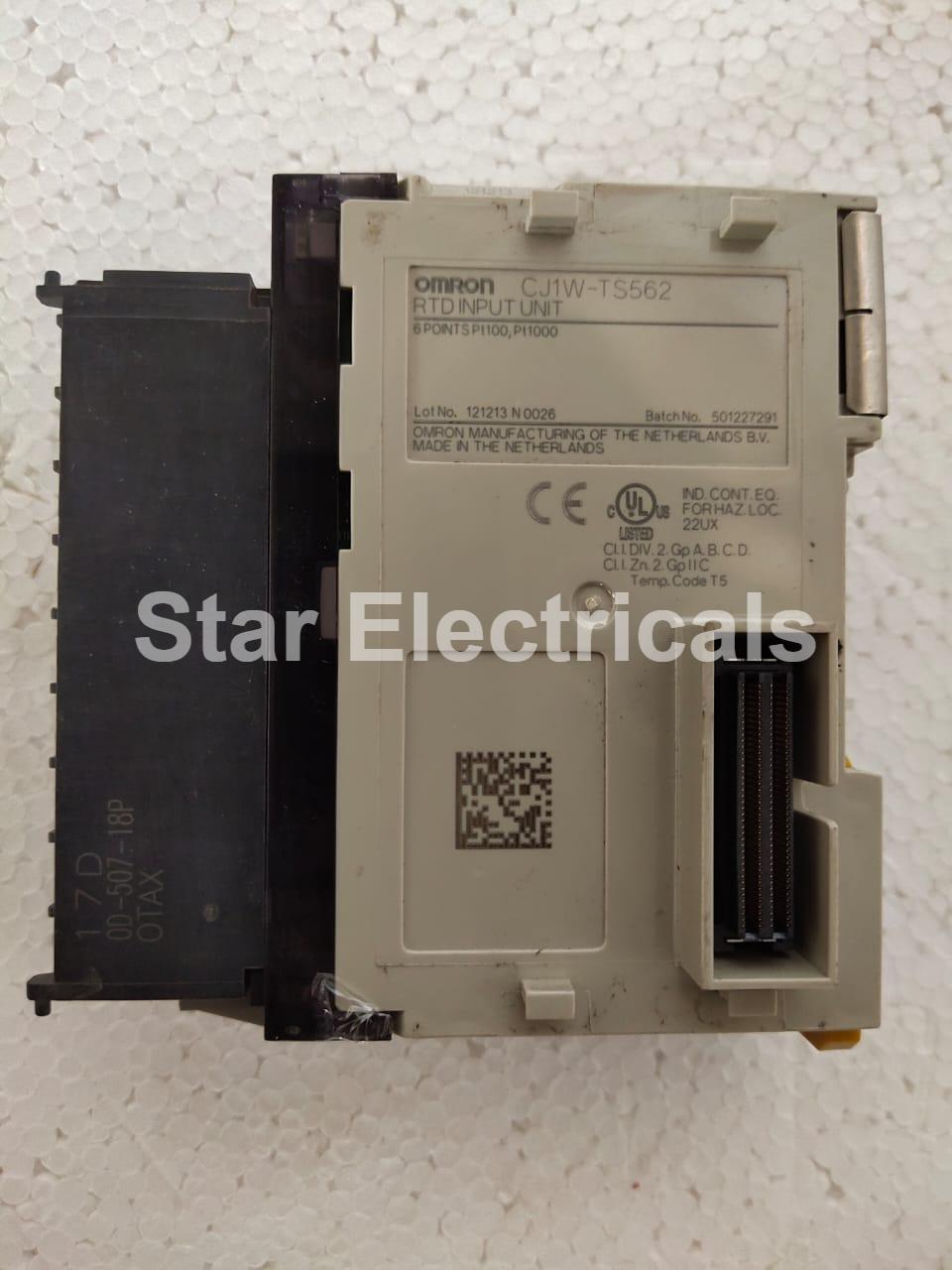

Omron CJ1W-TS562 RTD Analog Input Module

Name: Omron CJ1W-TS562 RTD Analog Input Module
Brand: Omron
SKU: 243
Availability: InStock

Pricing Status

USED

Specification Details
Brand: Omron
Product Series: CJ-Series Basic I/O / Analog Units
Measurement Range: -200.0 °C to +650.0 °C
Data Representation: 16-bit signed integer format
Indication Accuracy: ± 0.7 % of indicated value or ± 0.8 °C (whichever is larger) ± 1 digit max.
Internal Current Consumption: 250 mA maximum at 5 VDC (sourced via I/O bus).
•Wiring Terminal: Removable 18-point screw connection terminal block.
Dimensions (W x H x D): 31 mm x 90 mm x 89 mm
Weight: Approximately 176 grams unpacked
Status: Used Excellent Working (As Per Photos)
Country of Origin: Made in Netherlands
Shipping:Fast & Safe Worldwide Shipping Available.

chat WhatsApp

verified_user

Free Shipping

For Indian customers

verified_user

Secure Payment

100% protected

verified_user

Export Quality

Authentic & Certified

verified_user

Fast Delivery

Worldwide shipping

The Omron CJ1W-TS562 is a high-performance, basic I/O expansion unit engineered to provide highly accurate process temperature metrics directly into your Sysmac CJ-series modular automation infrastructure. This module effectively transitions analog thermal readings from up to 6 independent Pt100 or Pt1000 RTD sensor nodes into reliable 16-bit signed integer values.

Featuring built-in automatic leadwire compensation via dedicated reference terminals, the module actively corrects for signal loss over long wire distances to deliver pristine process metrics. Configuration is made highly manageable with integrated onboard DIP switches, allowing engineers to quickly adapt filter properties and sensor variations per channel without complex software rewrites. Designed to thrive in rugged manufacturing facilities, its slim 31 mm footprint minimizes rack real estate while offering maximum modular channel density.
