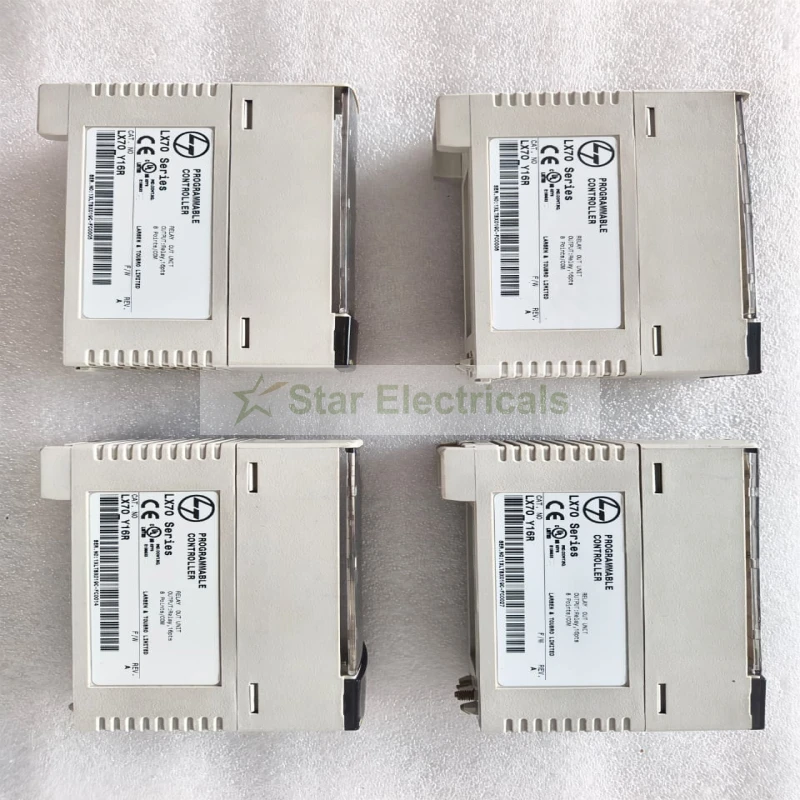

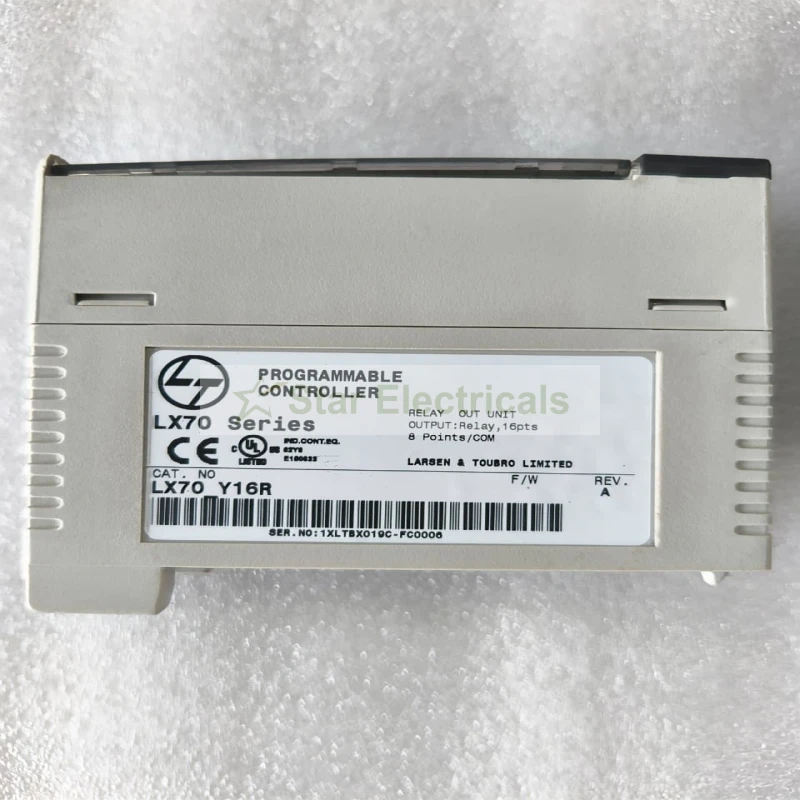

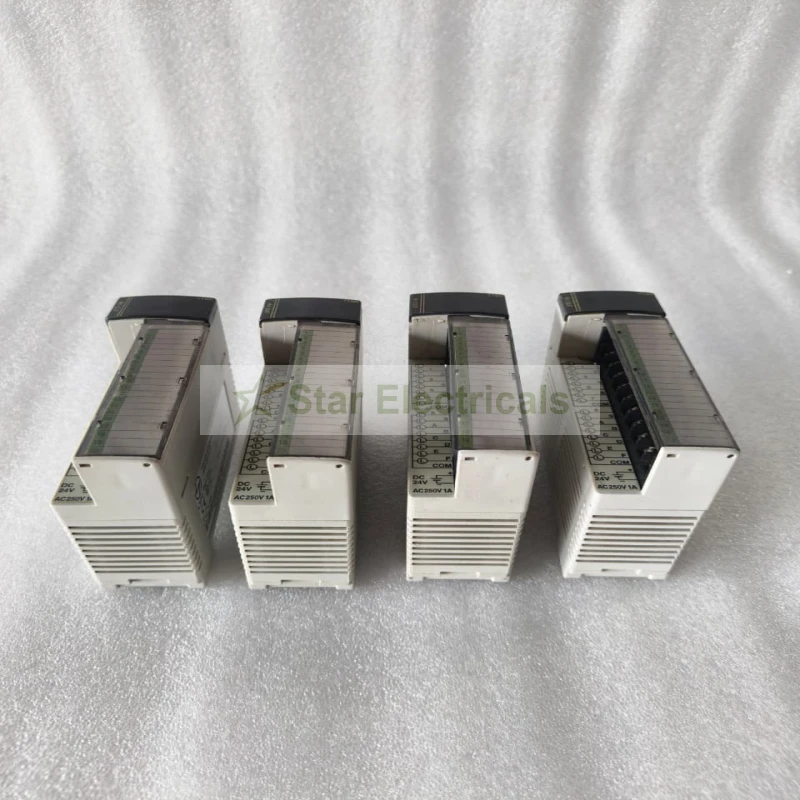

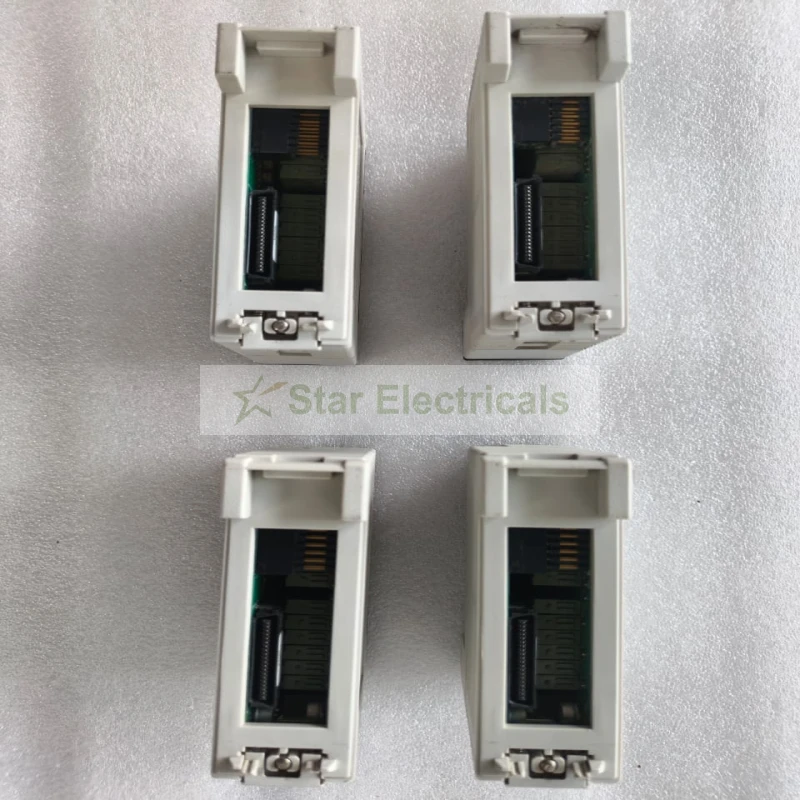

L And T LX70-Y16R LX70 Series Relay Output Module

Name: L And T LX70-Y16R LX70 Series Relay Output Module
Brand: L&T
SKU: 1717
Availability: InStock

Pricing Status

USED

Specification Details
Brand: L&T
Product: Relay Output Module
Series: LX70 Series
Catalog Number: LX70 Y16R / LX70-Y16R
Output Specification: Relay, 16 Points
Common Configuration: 8 Points / COM
Rating Limits: 250V AC / 30V DC (1A per channel, 3A maximum per common block)
Firmware Revision: Rev. A
Certifications: CE Marked, cULus Listed Industrial Control Equipment (E150833)
Status:- Used Excellent Working (As Per Photos)
Country of Origin:- Made In INDIA
Shipping:- Fast & Safe Worldwide Shipping Available.

chat WhatsApp

verified_user

Free Shipping

For Indian customers

verified_user

Secure Payment

100% protected

verified_user

Export Quality

Authentic & Certified

verified_user

Fast Delivery

Worldwide shipping

The L&T LX70-Y16R is a robust, high-performance digital relay output expansion module engineered by Larsen & Toubro Limited for their benchmark LX70 programmable logic controller (PLC) systems. Designed to manage physical switching elements seamlessly across factory environments, this 16-point module provides crisp, reliable isolation between delicate CPU logical commands and high-current machine peripherals.

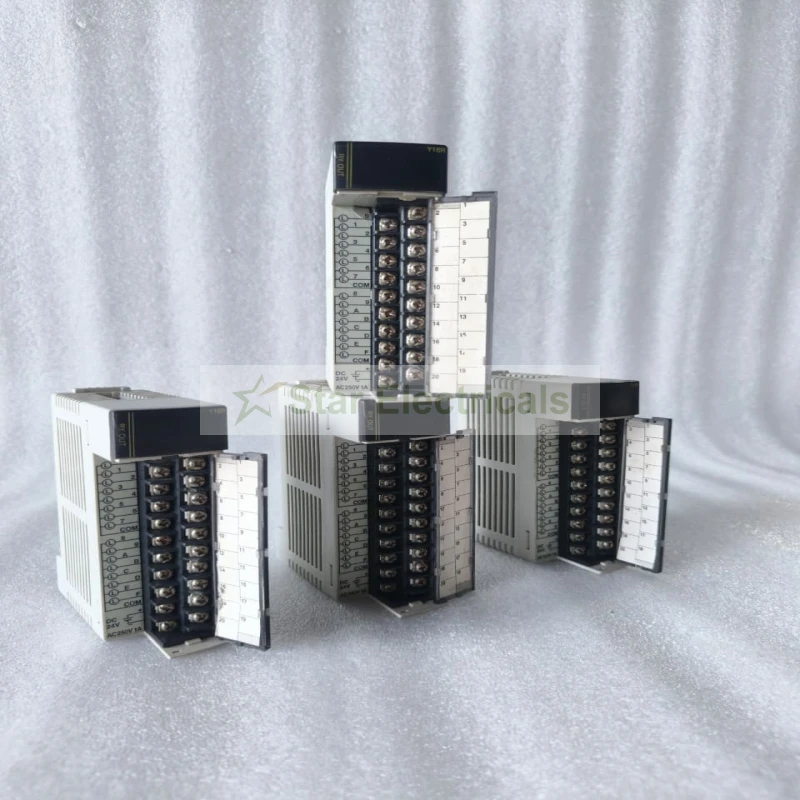

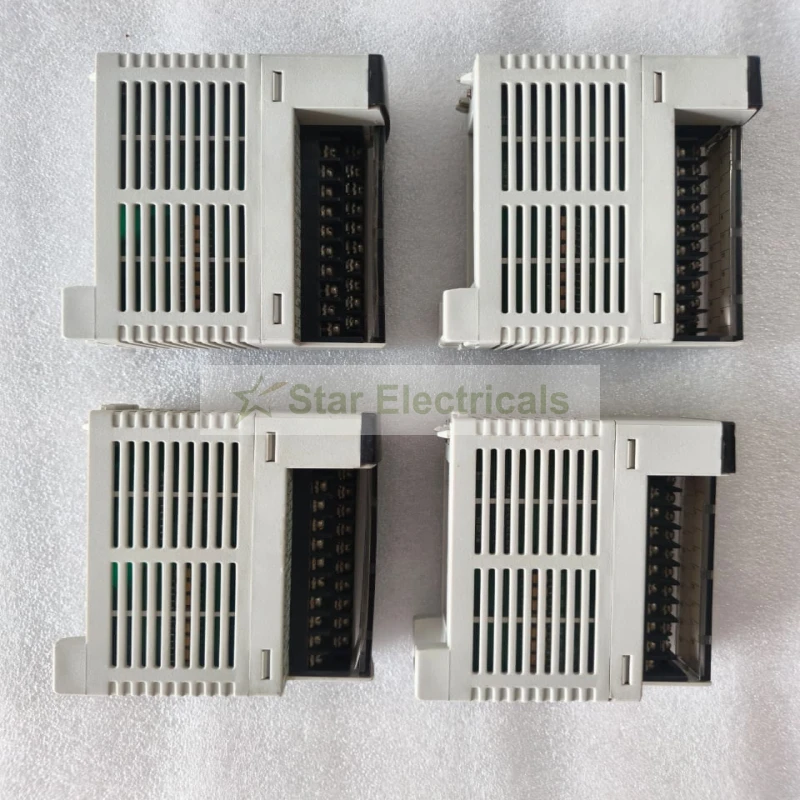

Configured with two separate common blocks (8 points per common), the unit permits localized wiring safety while managing complex sequencing loops, assembly configurations, and process automation hardware panels simultaneously. Its compact form factor features standard side ventilation grooves and locking clips to optimize space deployment and secure assembly inside standard commercial enclosure tracks.
