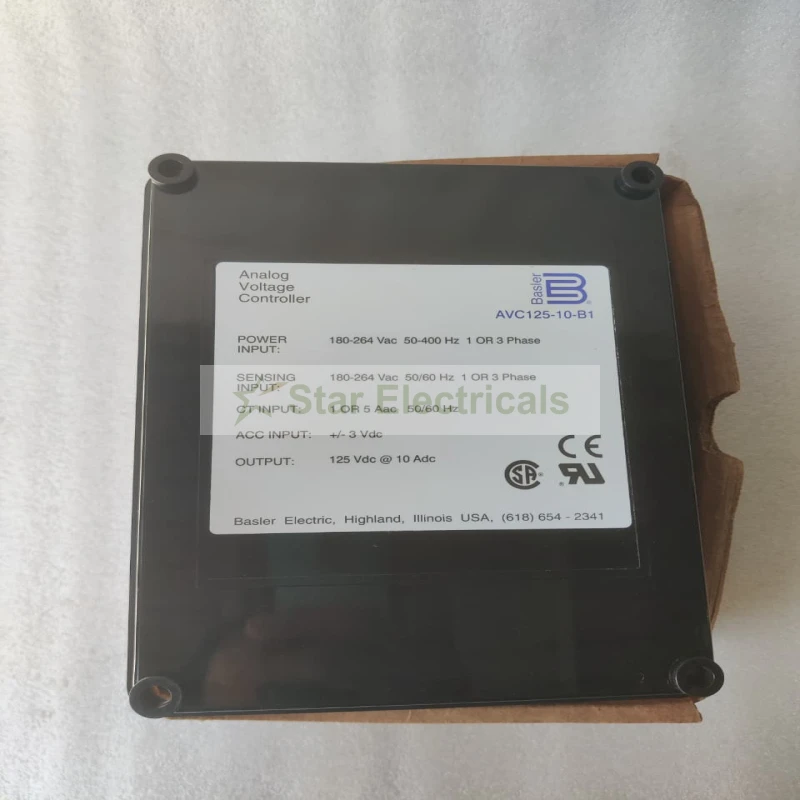

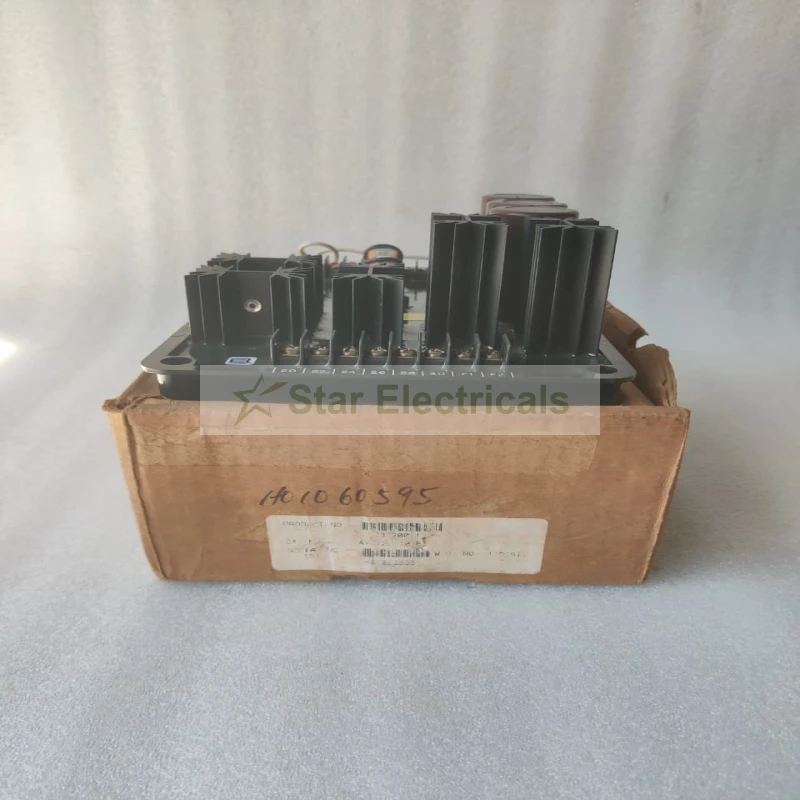

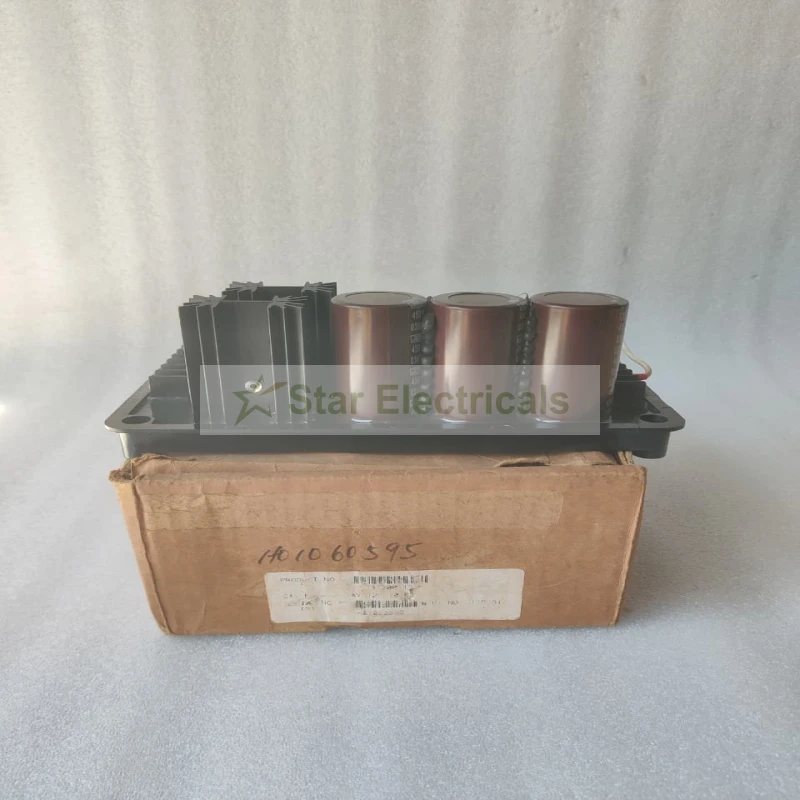

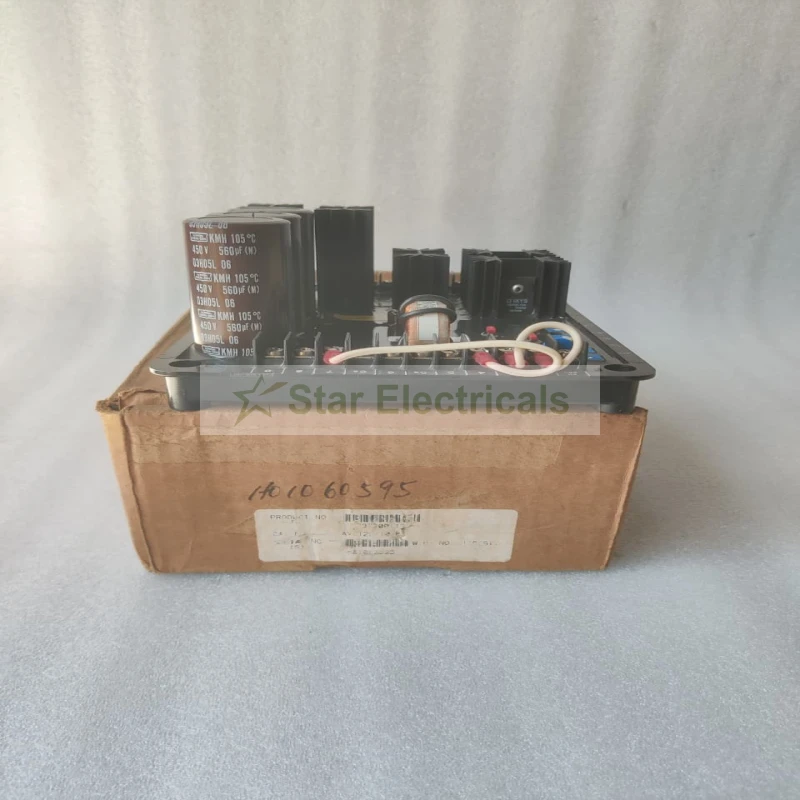

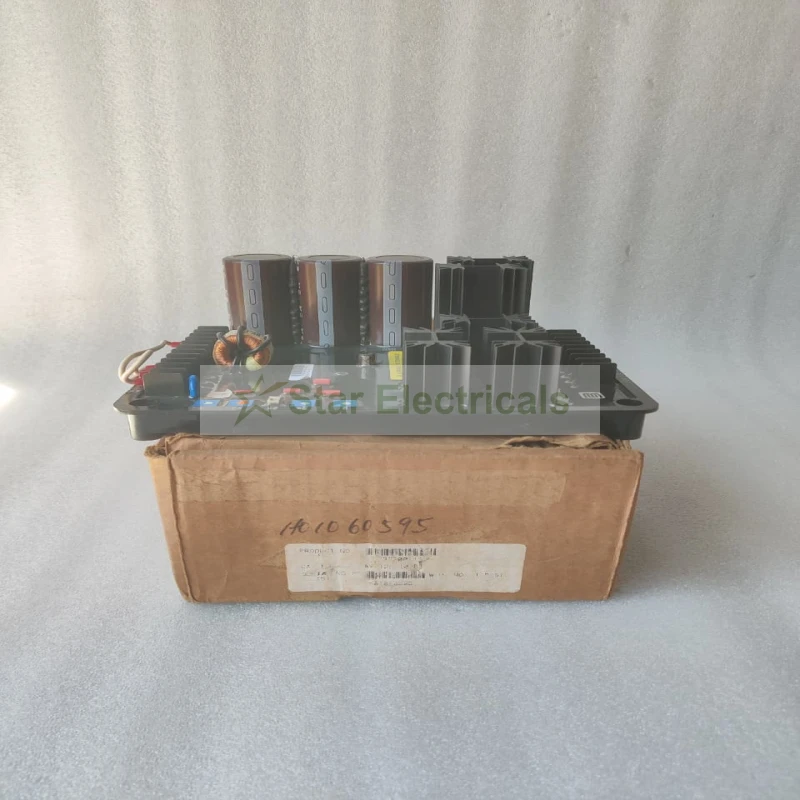

Basler AVC125-10-B1 Analog Voltage Regulator (AVR)
Specification Details
Brand: Basler Electric
Part Number: AVC125-10-B1
Product Type: Analog Voltage Controller
Controller Type: Automatic Voltage Regulator / Excitation Controller
Power Input Voltage: 180–264 VAC
Power Input Frequency: 50–400 Hz
Power Input Phase: 1 or 3 Phase
Sensing Input Voltage: 180–264 VAC
Sensing Input Frequency: 50/60 Hz
Sensing Phase: 1 or 3 Phase
CT Input: 1 A or 5 A AC
CT Frequency: 50/60 Hz
ACC Input: ±3 VDC
Output Voltage: 125 VDC
Output Current: 10 ADC
Output Rating: 125 VDC @ 10 ADC
Application: Generator Voltage Regulation & Excitation
Mounting: Panel/Enclosure Mounting
Certifications/Approvals: CE, CSA, UL Recognized
Manufacturer: Basler Electric
Country Of Origin: Made In Highland, Illinois, USA

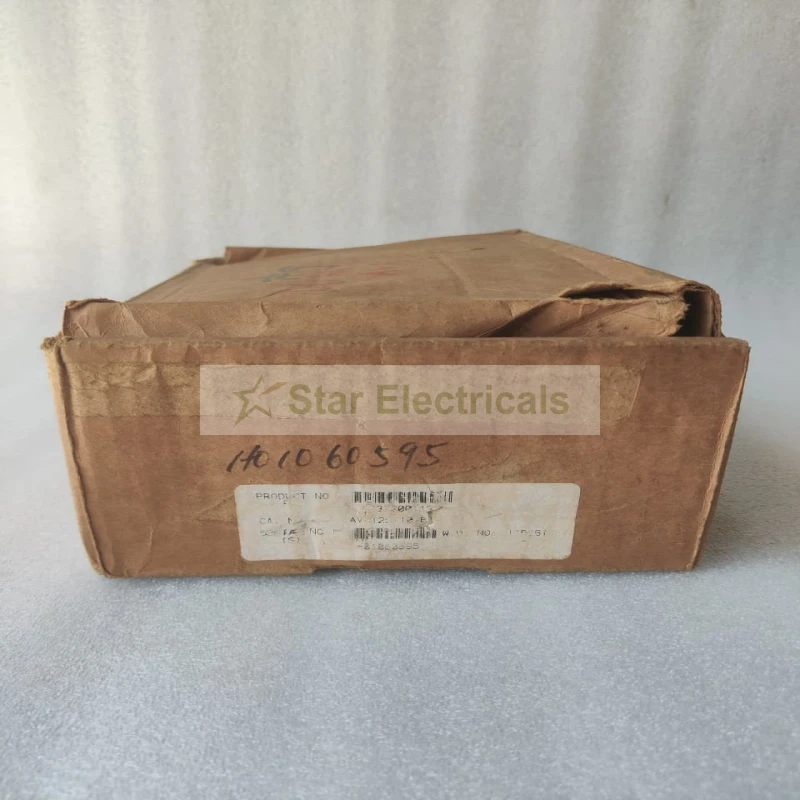

Condition: New Open Box (As Per Photos)
Shipping: Fast & Safe Worldwide Shipping Available.
The Basler AVC125-10-B1 Analog Voltage Controller is a high-performance generator excitation and automatic voltage regulation solution designed to provide stable and reliable control of generator output voltage. Manufactured by Basler Electric, this analog voltage controller is engineered for demanding power-generation and industrial applications.
The AVC125-10-B1 accepts a 180–264 VAC power input at 50–400 Hz and supports both single-phase and three-phase configurations. Its voltage sensing input operates from 180–264 VAC at 50/60 Hz, enabling accurate monitoring of generator voltage.
The controller features a 1 A or 5 A AC CT input and an ±3 VDC ACC input for control and sensing applications. It provides a powerful 125 VDC output at up to 10 ADC, making it suitable for generator field excitation and voltage regulation systems.
With its rugged industrial construction and recognized certification markings, the Basler AVC125-10-B1 is well suited for generator sets, industrial power systems, excitation systems, and electrical control applications where dependable voltage regulation is required.
